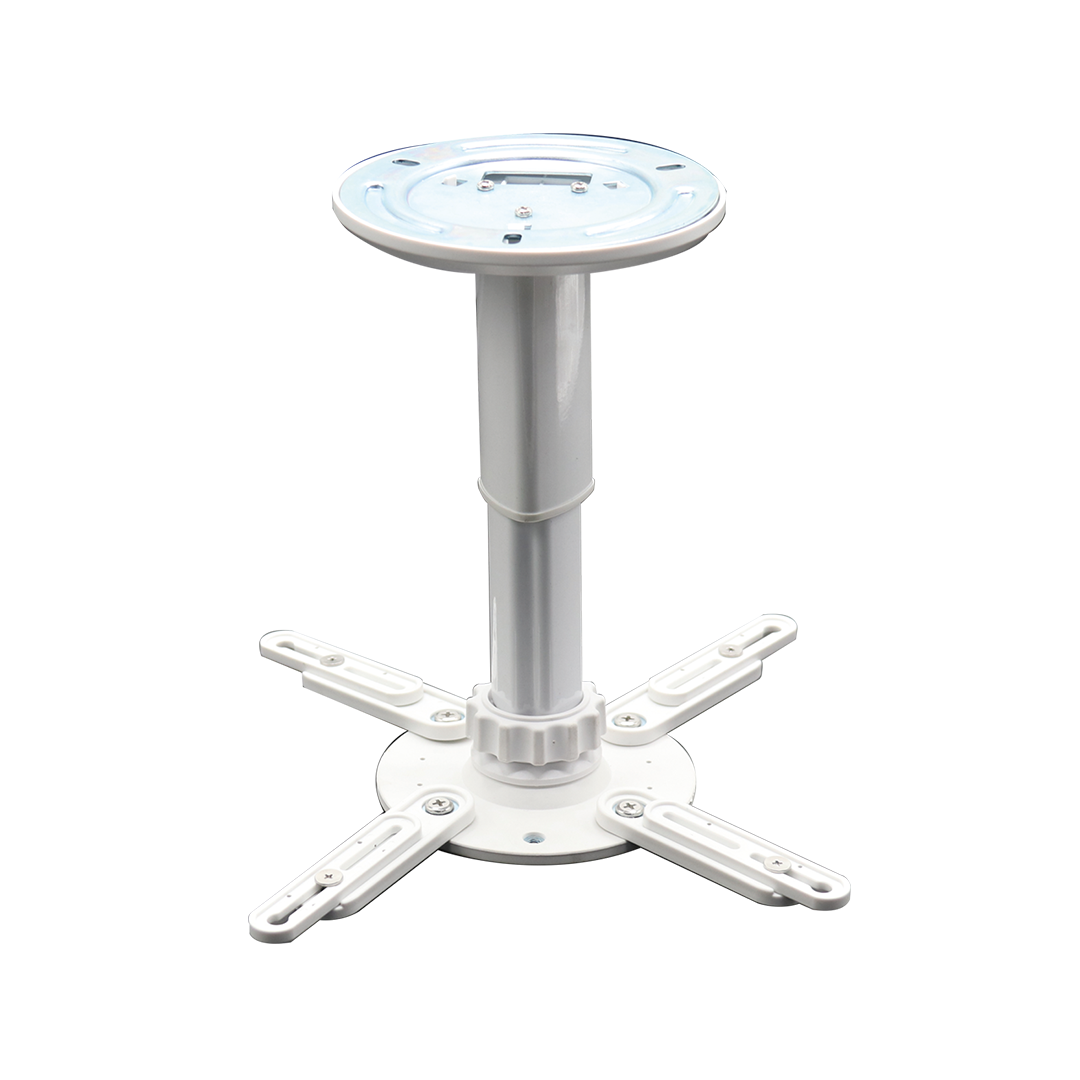

Projector Bracket DJ15 Series
Projector bracket DJ-MA015 is made of high-strength aluminum alloy, iron and plastic.It is lightweight and strong,and its load

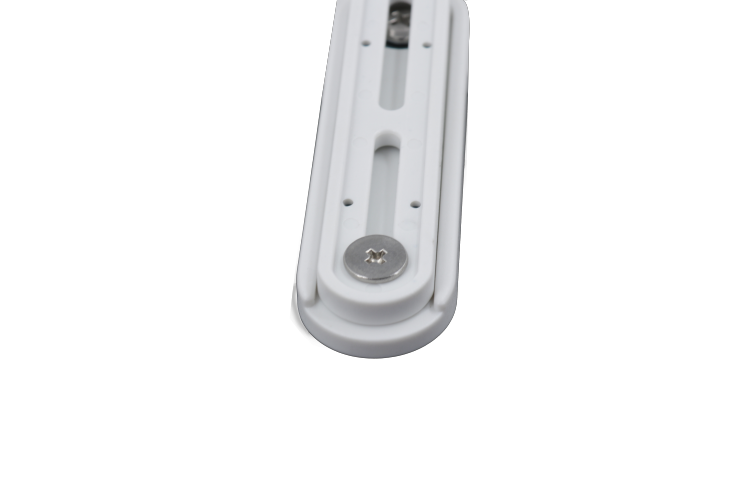

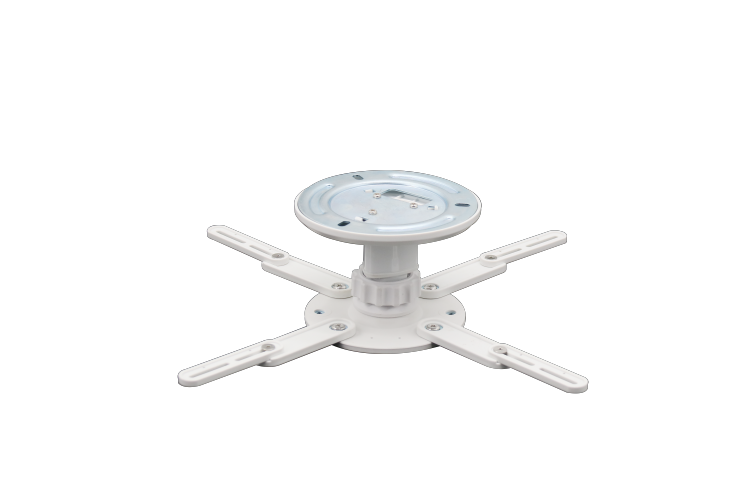

capacity is 7.5kg. With anodizing coloring technology, it is scratch-resistant, not easy to fade. Four claws are adjustable,
suitable for universal projectors.

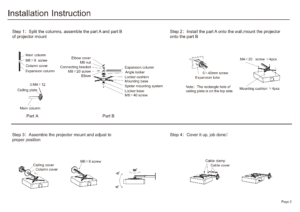

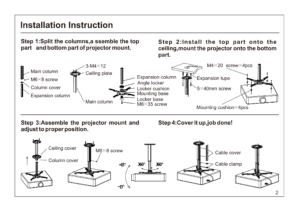

With innovative design. Easy to assembled and installed. The length, height and angle are adjustable.The mount can be 360 degree

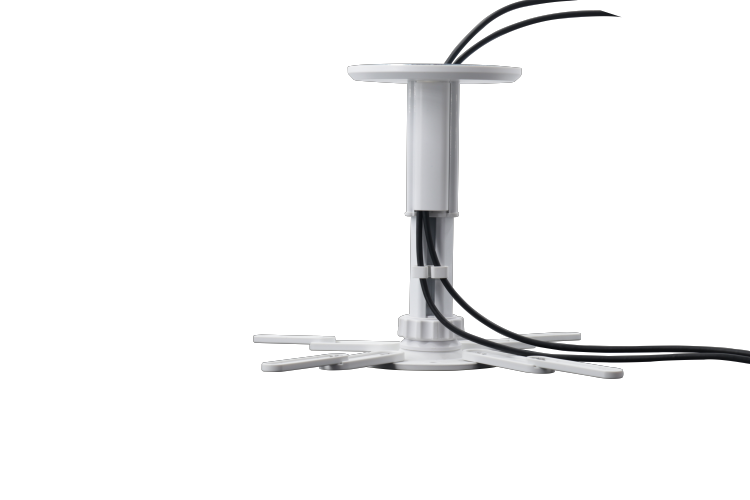

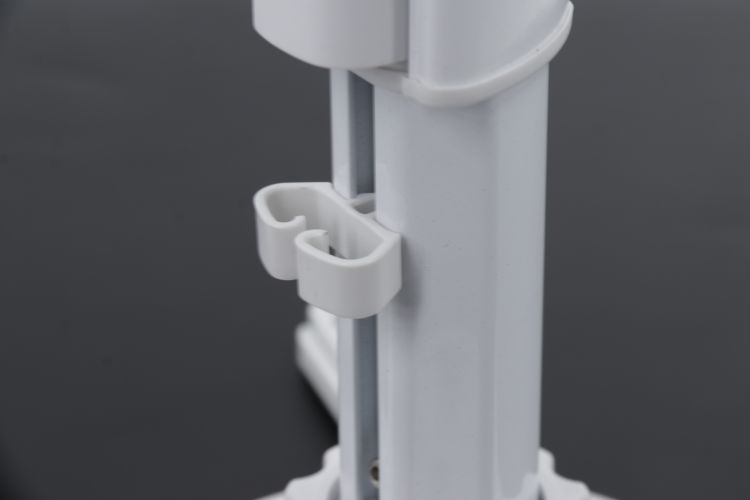

horizontal rotating and tilt 15° left/right/front/rear.The cable can be hide in the tube. Suitable for projectors ceiling mounted.
Color:White
Get Free Quote

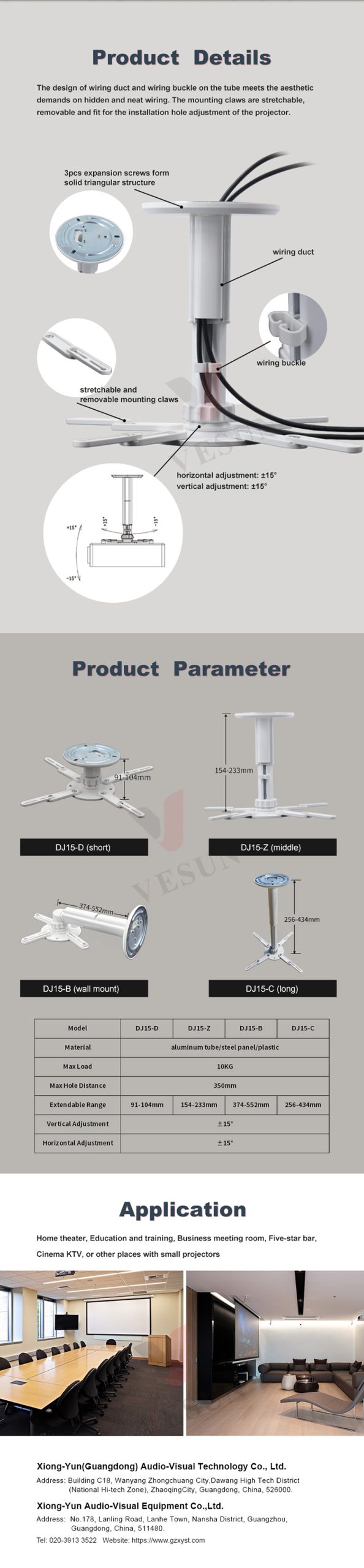

Specifications
DJ1-A

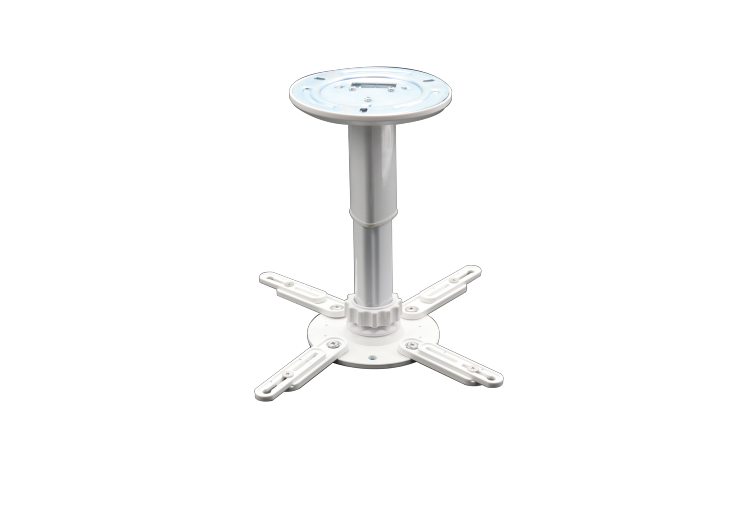

Ceiling mounted bracket with a short pipe Extension Length: 91-104 mm
Maximum Load: 10 KG
Maximum Load: 10 KG
DJ1-B

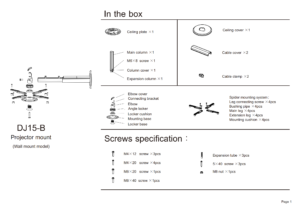

Wall mounted bracket Extension Length: 363-538 mm
Maximum Load: 10KG
Maximum Load: 10KG
DJ1-C

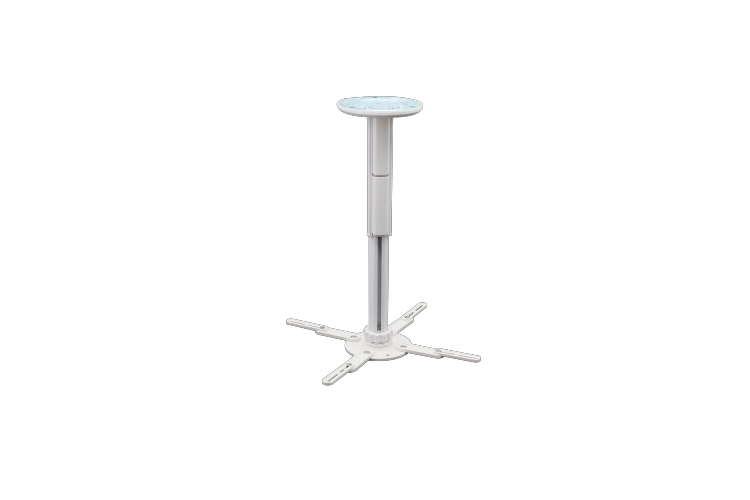

Ceiling mounted bracket with an extended long pipe. Extension Length: 256-434mm
Maximum Load: 10KG
Maximum Load: 10KG
DJ1-D
Ceiling mounted bracket with an adjustable middle pipe. Extension Length: 154-233mm
Maximum Load: 10KG
Maximum Load: 10KG
Specifications
|
Item No.
|
Tilt
Left or Right |
Tilt
Up or Down |
Min Height
(mm) |
Max Height
(mm) |
Mounting Holes Distance (mm)
|
Packing Size
L*W*H (mm) |
NW
(kg) |
GW
(kg) |
|
DJ1-A
|
±15°
|
±15°
|
91
|
104
|
350
|
490*340*330
|
0.84
|
1.2
|
|
DJ1-B
|
±15°
|
±15°
|
90
|
100
|
490*340*330
|
1.08
|
1.4
|
|
|
DJ1-C
|
±15°
|
±15°
|
256
|
434
|
490*340*330
|
1.02
|
1.4
|
|
|
DJ1-D
|
±15°
|
±15°
|
154
|
233
|
490*340*330
|
0.9
|
1.3
|
Features
Video
Projector Bracket DJ15 Series
