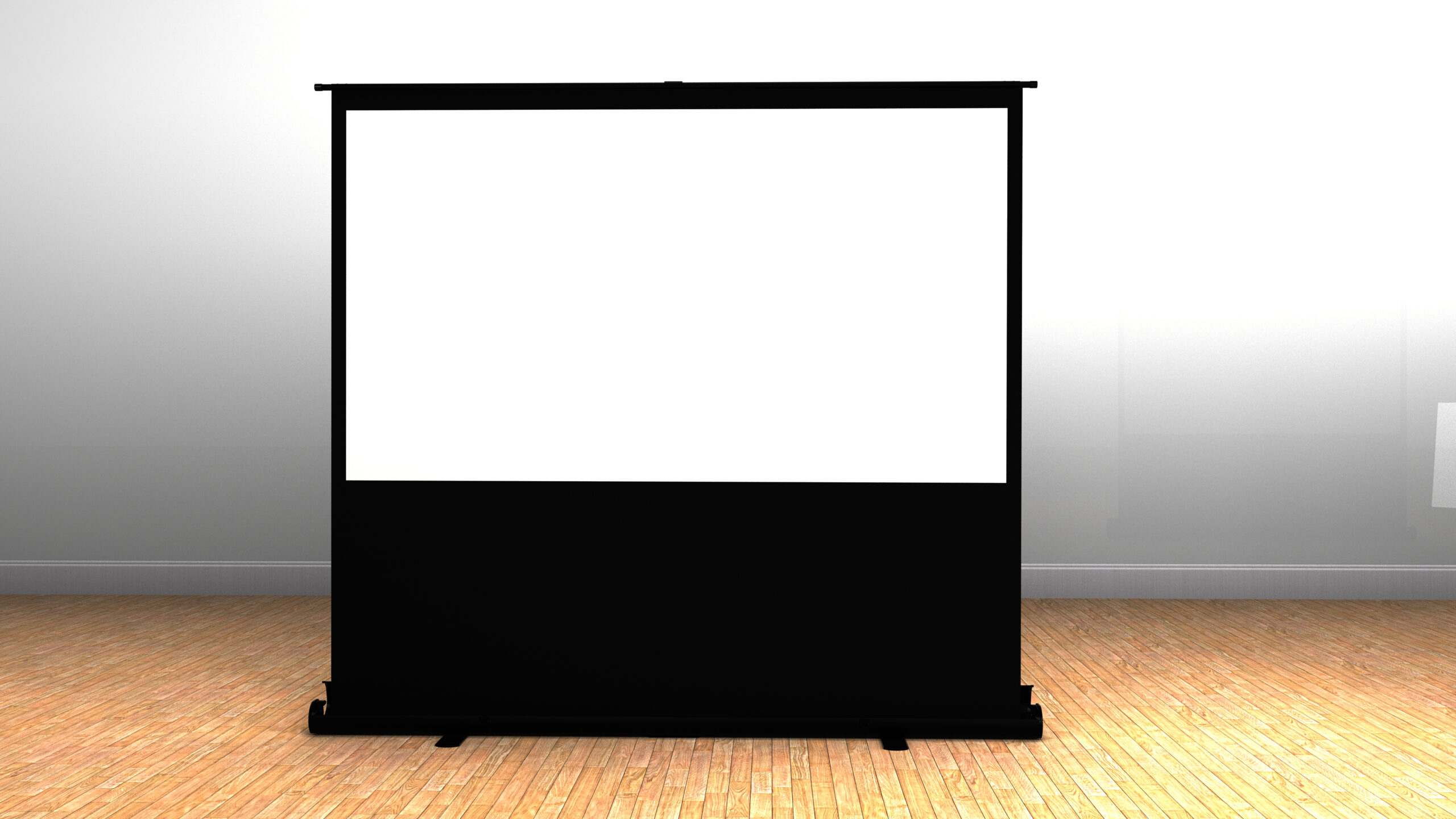

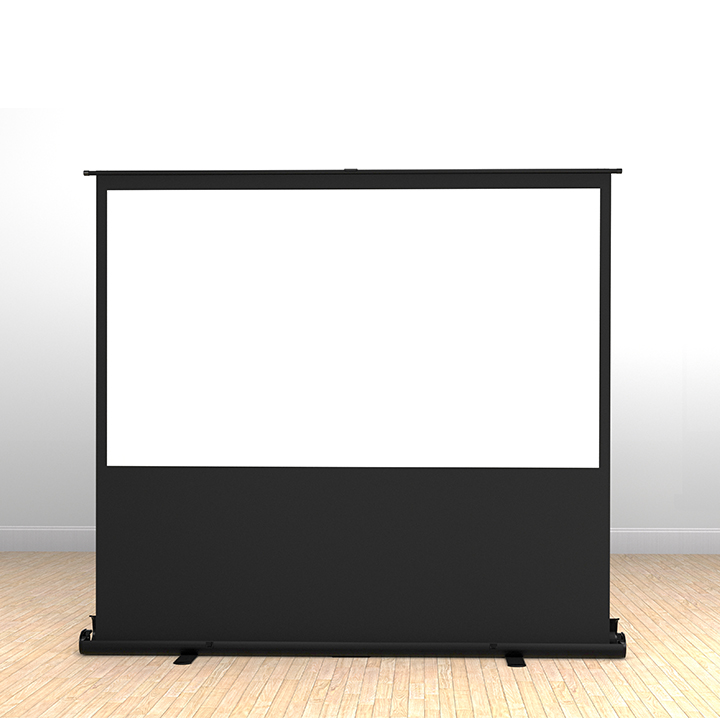

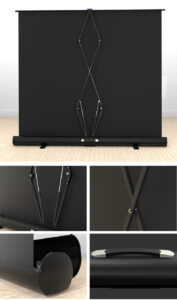

Manual floor rising projection screen DL45
Manual floor rising projection screen DL45 is an integrated molding, the use of aluminum alloy shell convenient screen. Rotating storage support foot, convenient and stable. Electroplated anti-rust buckle, stable and durable. Screen surface flat, visible height arbitrary adjustment.
Specifications

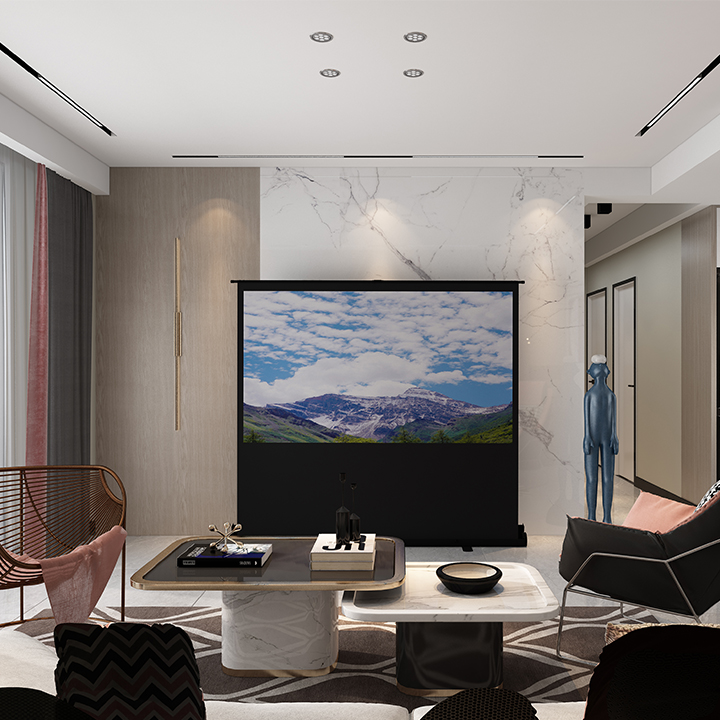

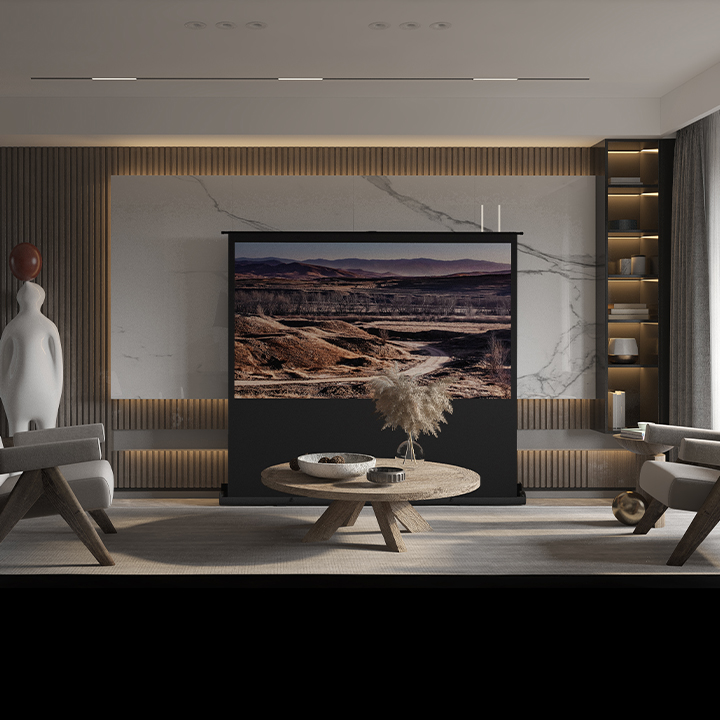

This type convenient manual floor rising screen, easy to open your home theater, not only easy to use and no installation required, but also easy to move. You can enjoy a visual feast anywhere in your home.
Product Feature
> Manual Floor Rising projector screens range from 60” to 100” diagonal sizes
> Easily transportable and free-standing, with quick open operation for ultimate convenience and portability
> Heavy-duty, yet lightweight black aluminum case with folding feet to add additional stability
> Air pressure spring and unique extension structure, allow screen stop at any desired level
> Perfect for 4K Ultra HD and HD Resolutions
> Easy to carry and store, with quiet and smooth operation
> Utilizes a dual point scissor structure for the pneumatic telescoping pull up mechanism
>Special lifting/self-locking system makes the screen adjusted its height easily and smoothly.
> Matte white projection screen fabric with black backing, 1.0 gain and 160° viewing angle
Portable Manual Pull Up Projector Screen. Easy Carry / Adjustable Height / Stable and flat surface.

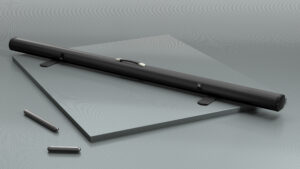

Portable handle design, adjustable height,durable,aluminum housing.

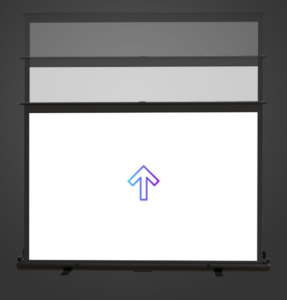

Pull up displays a big world,Open and close within 10s, screen intergrates with housing, adjustable height.

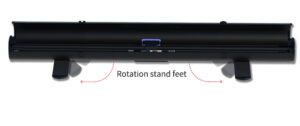

Stable rotation stand feet,Rotation stand feets under the housing,makesit more stable.

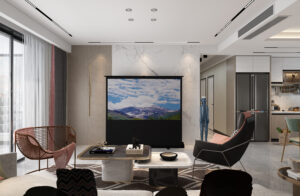

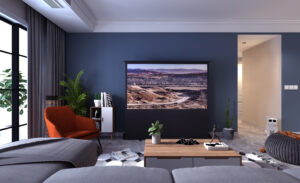

Full screen+ Wide Angle, Adjust projection position as you want make it feels likein a true cinema.
Double pressure support bars system makes screen flat,Lift up and down more stable.
Dimension parameter
| Format | Size | Viewing Area | Size of the shell | Top black border (S) | Left/Right black border (B) | Bottom black border (J) | Open total Height (Z) | Package Size (mm) | N.W. | G.W. | ||||
| W(mm) | H(mm) | K | G | L | W | H | (KG) | (KG) | ||||||
| 4:3 | 100″ | 2032 | 1524 | 131 | 103 | 50 | 50 | 500 | 2186 | 2371 | 193 | 172 | 15 | 19 |
| 90″ | 1829 | 1372 | 131 | 103 | 50 | 50 | 500 | 2034 | 2168 | 193 | 172 | 13 | 17 | |
| 80″ | 1626 | 1219 | 131 | 103 | 50 | 50 | 500 | 1881 | 1965 | 193 | 172 | 11 | 15 | |
| 72″ | 1463 | 1097 | 131 | 103 | 50 | 50 | 500 | 1759 | 1802 | 193 | 172 | 9.5 | 13.5 | |
| 70″ | 1422 | 1067 | 131 | 103 | 50 | 50 | 500 | 1729 | 1761 | 193 | 172 | 8 | 12 | |
| 60″ | 1219 | 914 | 131 | 103 | 50 | 50 | 500 | 1576 | 1558 | 193 | 172 | 6 | 10 | |
| 16:9 | 100″ | 2214 | 1245 | 131 | 103 | 50 | 50 | 800 | 2207 | 2553 | 193 | 172 | 12.5 | 16 |
| 90″ | 1992 | 1121 | 131 | 103 | 50 | 50 | 800 | 2083 | 2331 | 193 | 172 | 11 | 14.5 | |
| 80″ | 1771 | 996 | 131 | 103 | 50 | 50 | 800 | 1958 | 2110 | 193 | 172 | 10 | 13 | |
| 70″ | 1550 | 872 | 131 | 103 | 50 | 50 | 800 | 1834 | 1889 | 193 | 172 | 8.5 | 12 | |
| 60″ | 1328 | 747 | 131 | 103 | 50 | 50 | 800 | 1709 | 1667 | 193 | 172 | 7 | 10.5 | |
